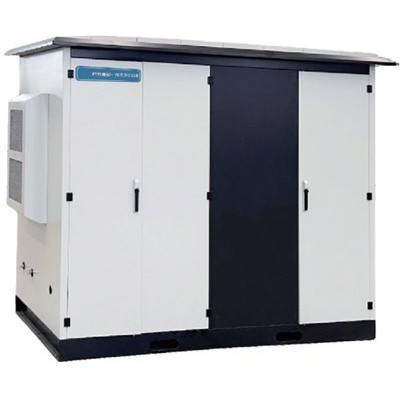

Pipeline Direct Drinking Water Equipment
Core Product System and Technical Advantages
1. Core Purification Technology
It adopts the UF (Ultrafiltration) + NF (Nanofiltration) + RO (Reverse Osmosis) three-membrane integrated real-time water production process:
- The pre-treatment stage uses multi-media filters, activated carbon filters, and precision filters to remove sediment, residual chlorine, and suspended solids;
- The core membrane system deeply removes harmful substances such as heavy metals (lead, mercury, etc.), bacteria, viruses, and pesticide residues. It automatically stabilizes the TDS value of purified water at 35ppm-50ppm and pH value at 7.1-8.0 (weakly alkaline), while maximally retaining minerals necessary for the human body;
- It is equipped with a dual sterilization system combining ultraviolet sterilization and ozone preservation. The terminal pipeline network undergoes regular cyclic disinfection to avoid secondary pollution and ensure fresh outlet water.
2. Intelligent and Energy-Saving Features
- Intelligent monitoring and operation: Equipped with an IoT platform, it supports real-time monitoring of equipment parameters (flow rate, pressure, water quality) via mobile APP/PC. It features automatic fault alarm, and the local operation panel can guide maintenance through PLC self-diagnosis, realizing "unattended operation + remote control";
- High water-saving design: Reverse osmosis concentrated water is mixed with raw water for reuse. The water-saving control system achieves a recovery rate of over 80%, far superior to traditional water purifiers, thus reducing water waste;
- Modularity and durability: The main body of the equipment is made of SUS304 stainless steel (with Teflon anti-corrosion for the raw water tank). Pipes and valves adopt medical-grade welding technology to prevent pitting corrosion and extend equipment service life.It is suitable for scenarios such as newly-built/old-renovated residential buildings, commercial buildings, campuses/hospitals, hotels/offices, and corresponding water supply solutions are provided. The product belongs to the SKSS-NF/RO series, with a purified water output of 250L-3000L per hour, and the water quality complies with the CJ94-2005 standard. Meanwhile, EPC turnkey services are offered, including a one-year equipment warranty, 24/7 operation and maintenance, and free training for operators.
It is suitable for scenarios such as newly-built/old-renovated residential buildings, commercial buildings, campuses/hospitals, hotels/offices, and corresponding water supply solutions are provided. The product belongs to the SKSS-NF/RO series, with a purified water output of 250L-3000L per hour, and the water quality complies with the CJ94-2005 standard. Meanwhile, EPC turnkey services are offered, including a one-year equipment warranty, 24/7 operation and maintenance, and free training for operators.
